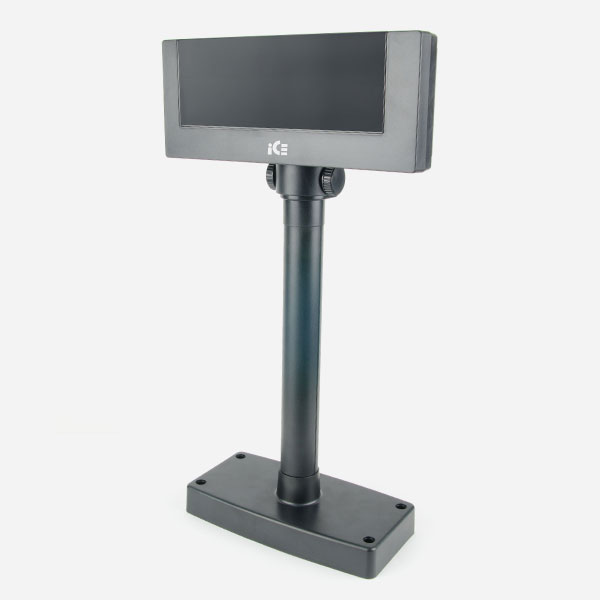

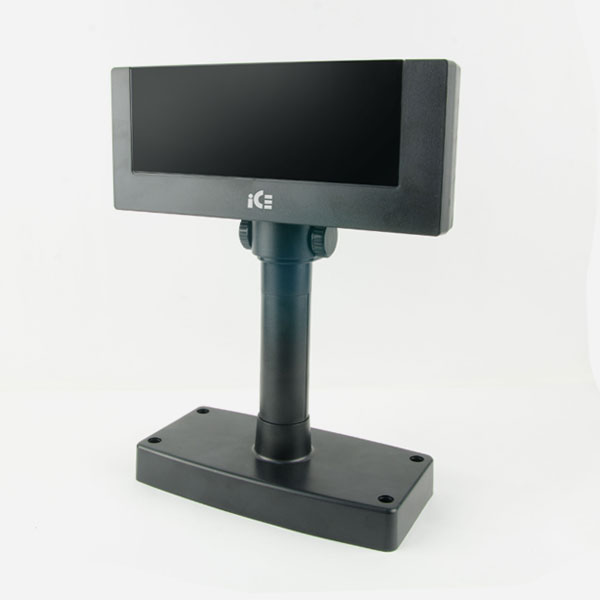

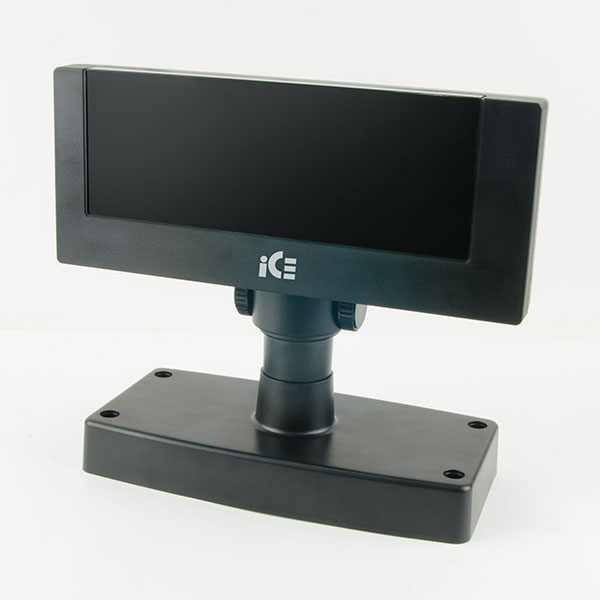

ICD 7000


Display Monitor

Description :

iCE provides VFD Customer Display with reliability, wide viewing angle and long operation life. It’s interface based on RS-232C, and RS232C baud rate from 4800 to 38400bps makes it one of the best in the industry. It is designed in such a manner that user-defined character and message can be downloaded. It is manufactured in an easy-to-use manner making it more customer friendly.

Product Features:

  • Data can be displayed on 20 columns x 2 lines
  • Large character and blue-green color for easy visibility
  • Command emulation modes include POS7300/ CD5220 II/ ADM787/ UTC / AEDEX/ Epson/DSP800.
  • Window function controlled display area
  • The DIP switches setting emulate commands mode, baud rate and international character.
  • Reverse characters can be specified using the Epson command set.

User Friendly

Cost Effective

Adjustable Height

Highly Bright Display

Data Display

20 columns x 2 lines or 12 columns x 1 line.

Character type

1 kind of user defined character

2 x 20 type

96 alphanumeric / 13 kinds of international character sets /

1 x 12 types

10 numeric

Character Font

2 x 20 type: 5 x 7 dot matrix; 9.0 mm x 5.25 mm

1 x 12 type

7 segment, dot matrix 17.0 x 5.4 mm

User-defined characters

Messages can be downloaded (Only for 2 x 20 type)

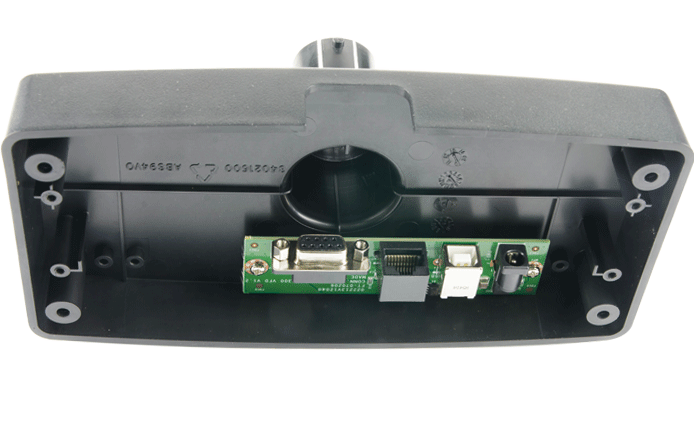

Interface

USB + Serial interface.

Color

White or Black available.

Display color

Blue green

Power Requirement

DC +12V ~ +19V; 3 ~ 6W

Tilt angle

0° ~ 45°; Rotation angle Max. 270°

Dimension

Base 19.7 x 10 cm (W x D); 19.5 / 28.5 / 56 cm (H)

Net Weight

1.25 kg

Operation

5 °C ~ 45 °C; 30 % ~ 85 % relative humidity
