3 Years Warranty
Thermal Ventilation
RAID capability

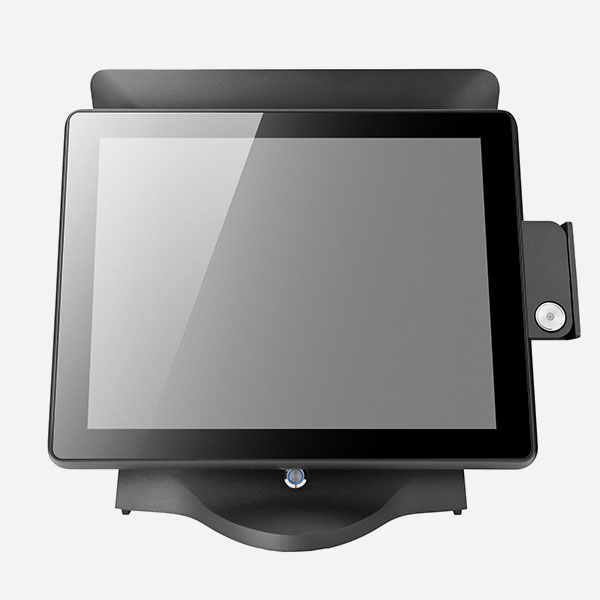

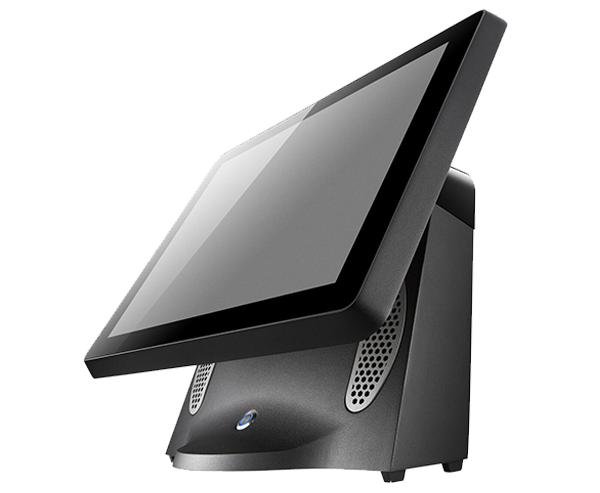

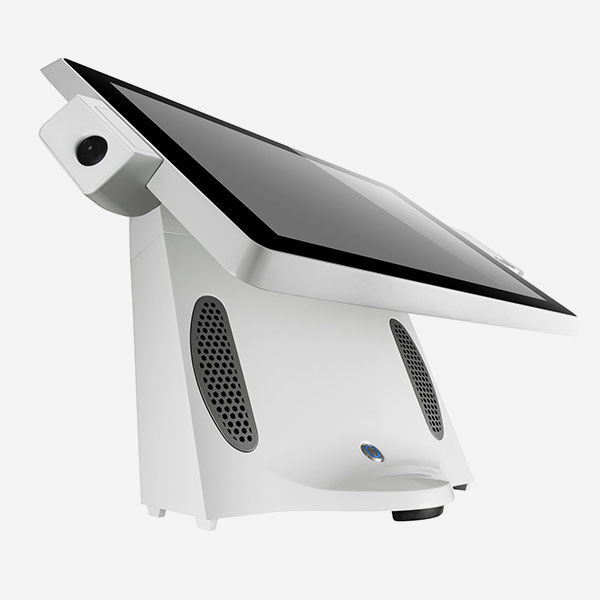

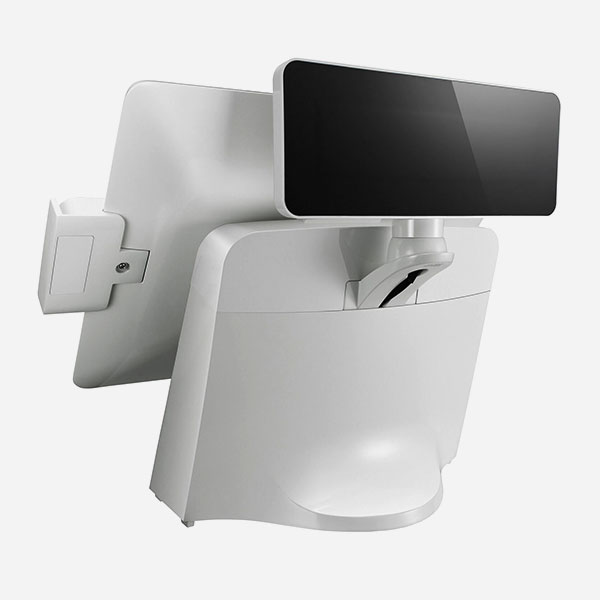

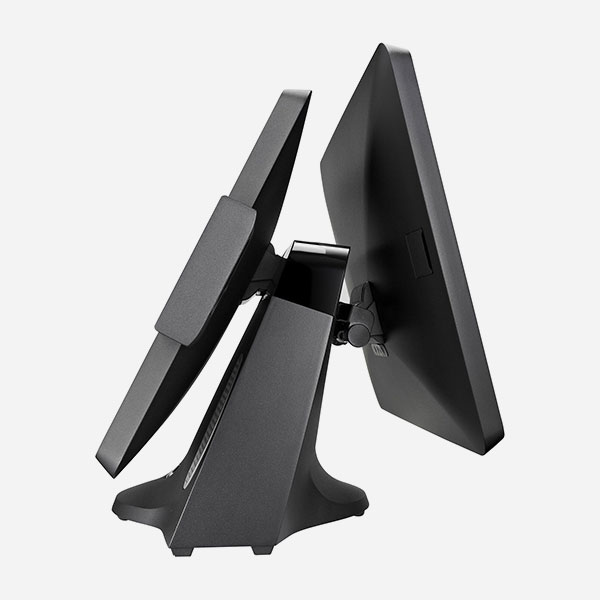

ITS-815 TORIPOS Series
Touchscreen POS - Premium High End Computing
Description :
TORIPOS series ITS-815 touch screen is designed with the sleek front panel and the compact computing module in the base. The frameless projected touch panel with its robust glass is ideally suited for hotels, restaurants, stores as well as retail shops. ITS 815 features intel latest generation Core™ CPU, LED backlight panel with PCAP touch screen along with alternative options for two hard drives or solid-state drives with RAID capability.
Product Features:
- Intel latest generation Core CPU
- 15” LED backlight LCD panel with PCAP touch screen
- Stylish design with die-casting chassis
- Flexible architectures for peripherals
- Peripherals compatibility: MSR, iButton, RFID, fingerprint, reader, smart card reader and 2nd display
- Upward facing connection points and modularized components
- Thermal ventilation structure
- Easy serviceability and maintenance
|
Model Name |
ITS-815 |
ITS-915 |
ITS-950P |
|
|
Main Board |
Processor |
Intel® Celeron G540 2.5GHz ,Cache 2MB |
Intel® Core i5-3550S 3.0GHz ,Cache 6MB |
Intel® Haswell i5-4570S 2.9GHz, Cache 6MB |
|
Chipset |
Intel® H61 Express |
Intel® Q77 Express |
Intel® Lynx Point PCH Q87 (AMT technology ) |
|
|
TPM |
N/A |
N/A |
Yes |
|
|
LCD Size |
15" TFT LCD(LED backlight) |
|||
|
System Memory |
1 x DDRIII 1600 DIMM, up to 8GB |
2 x SO-DIMM DDRIII 1600MHz, up to 16GB |
||
|
Display & Touch |
||||
|
Brightness |
350nits |
|||
|
Resolution |
1024 x 768 |
|||
|
Touch Technology |
True Flat Projected Capacitive Technology |
|||
|
Storage |
HDD/SSD |
1 x SATA (2.5'') HDD or SSD |
2 x SATA (2.5'') HDD or SSD |
|
|
RAID Function |
N/A |
RAID 0 / RAID 1 |
RAID 0 / RAID 1 |
|
|
I/O & Expansion |
DC Input |
1 x Mini Din 4P (DC 12V only) |
1 x Mini Din 4P (DC 19V only) |
|
|
Cash Drawer |
1 x RJ-11 (Power Pin 12V) |
1 x RJ-11 (12V or 24V(default)) |
||
|
LAN port |
1 x Gigabit Ethernet by RJ-45 |
|||
|
USB port |
4 x USB 2.0 |
4 x USB 3.0 |
2 x Power USB_12V, 1 x Power USB_24V 2 x USB 3.0 ; 2 x USB 2.0 |
|
|
COM port |
3 x RS-232(COM1/2:DB-9, COM3:RJ-48) w/ RI/5V/12V Selectable by BIOS (default is RI) |
3 x RS-232 w/ RI/5V/12V power , (COM1~COM3 : RJ-48) |
||
|
Audio port |
1 x Line-out ; 1 x Mic-In |
1 x Line-out ; 1 x Mic-In |
||
|
VGA Port |
1 x DB-15 VGA port |
1 x DB-15 VGA port, Power enabled by BIOS setting (default disable) |
||
|
Bus Expansion |
1 x Mini-PCI-E Slot |
|||
|
Power Switch |
1 x power on / off switch button |
|||
|
Speaker |
HD Audio, 2W Speaker x 2 |
|||
|
OS Support |
Windows 8.1, Windows 7, POSready 7 |
Windows 10 IOT, Windows 8.1, Windows 7, POSready 7 |
||
|
Power Adapter |
External adapter, 120 +12VDC |
External adapter, 180 Watts, +12VDC,15A max. +12VDC |
External adapter, DC Model : 180 Watts, Voltage:+19VDC 9.47 Amax |
|
|
Compliance |
Certifications |
CE, FCC, LVD, RoHS, WEEE, REACH |
||
|
Protection |
IP 66 on front panel |
|||
|
VESA Mount |
n/a |
|||
|
Material |
Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic |
|||
|
Color |
Main Unit: White / Black |
|||
|
Dimensions |
375 x 322 x 259 |
|||
|
Weight |
7.8Kg |
|||
|
Environment
|
Operating Condition |
0oC ~ 40oC, 10% ~ 90% RH, non-condensing |
||
|
Storage Condition |
-20oC ~ 60oC, 10% ~ 90% RH, non-condensing |
|||
