2-Years Warranty
Impressive Battery Life

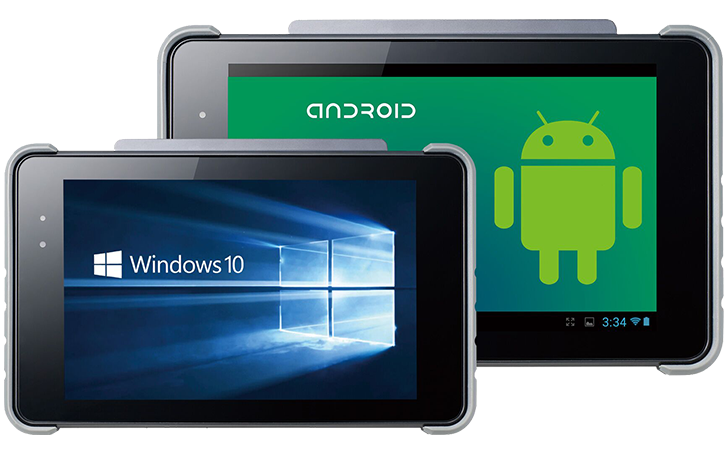

Android / Windows Integration

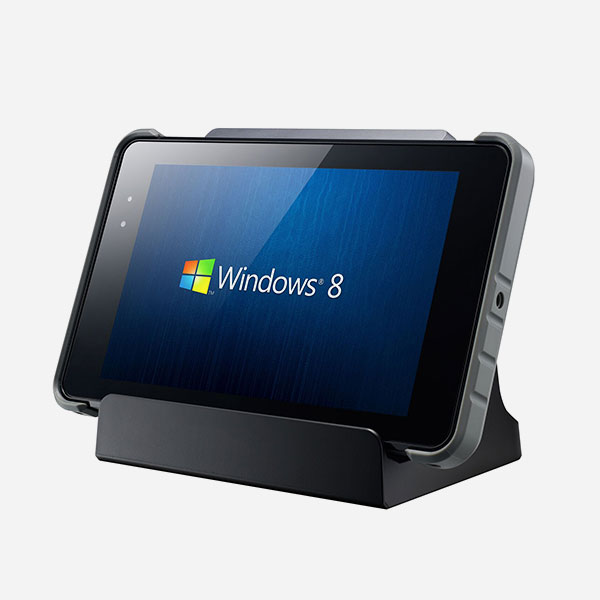

VariPAD W Series
Industrial Tablet - Computing at the palm of your hands
Description :
VariPAD W Series is a quite demanding one in the market right now. Therefore, it is designed exclusively with 7”/10.1” P-Cap Touch screen with IP 54 waterproof certification. The 8,000mAh swappable battery makes it ideal for service, retail and hospital industry. VariPAD W Series features Intel Bay Trail T CR Z3735F with hand strap and holster to ensure security making it more efficient, durable and the right one for your industry.
Product Features:
- Real-time data transmission by 3G/ WIFI/ Bluetooth
- Built-in Integrated MSR, 5MP camera, NFC Module

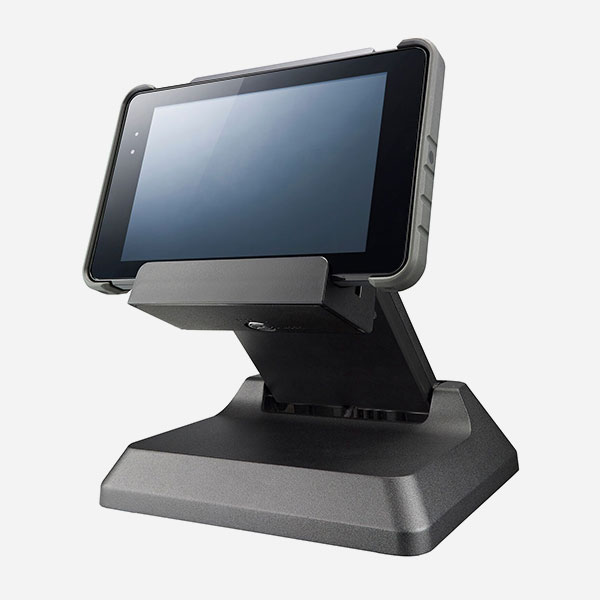

- PB45 I/O Expansion Cradle gives additional connectivity
- Windows OS/ Android Available
- Optional Modules such as Chip-and-PIN reader, Finger printer, 1D / 2D QR Code Scanner, and 3G Module are available
- Satisfies 1.2m Multiple Drop Test
|
Main Board |
|
|
Processor |
Intel® Bay-TrailZ3735F 1.83GHz |
|
System Memory |
2GB LPDDR3 |
|
Storage |
32GB eMMC (embedded MultiMedia Card) |
|
Display & Touch |
|
|
LCD Size |
W1：7″ |
|
W2：10.1″ |
|
|
Brightness |
W1：300 nits |
|
W2：370 nits |
|
|
Resolution |
W1：1280 x 800 (WXGA) |
|
W2：1920 x 1200 (WUXGA) |
|
|
Touch Technology |
P-CAP 5 points Multi-touch |
|
Wireless Networking |
|
|
Wireless LAN |
802.11 a/b/g/n, 2.4GHz / 5GHz |
|
Bluetooth |
4.0+LE, Class 2 (Bluetooth® Low Energy) |
|
NFC |
1 |
|
3G |
3G (Optional) |
|
I/O & Expansion |
|
|
Micro SD Socket |
1 (support up to 64GB) |
|
DC Input |
6 pin |
|
Power Switch |
1 x power on / off switch button |
|
Speaker |
W1：1W x 1 Speaker |
|
W2：1W x 2 Speaker |
|
|
Control / Indicator |
|
|
Power Button |
1 |
|
Sensor |
G-sensor, Ambient Light Sensor (NO GPS) |
|
Vibration |
Built-in vibrating motor |
|
LED Indicator |
1 (Battery status indicator) |
|
Camera |
5M pixel ( Rear side) |
|
Peripherals |
|
|
MSR |
3 Tracks MSR |
|
SCR |
PS/SC 1.0, ISO7816 Compliance |
|
Scanner |
1D/2D Barcode Scanner (Combo Module optional) USB Type |
|
FingerPrint |
FingerPrint (Optional) |
|

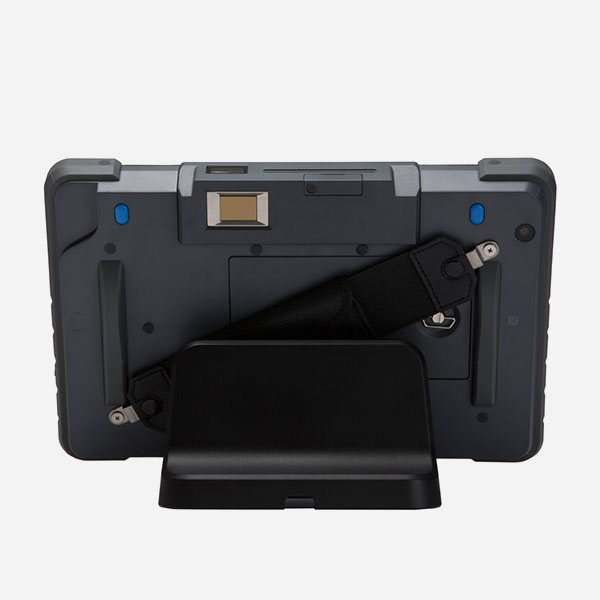

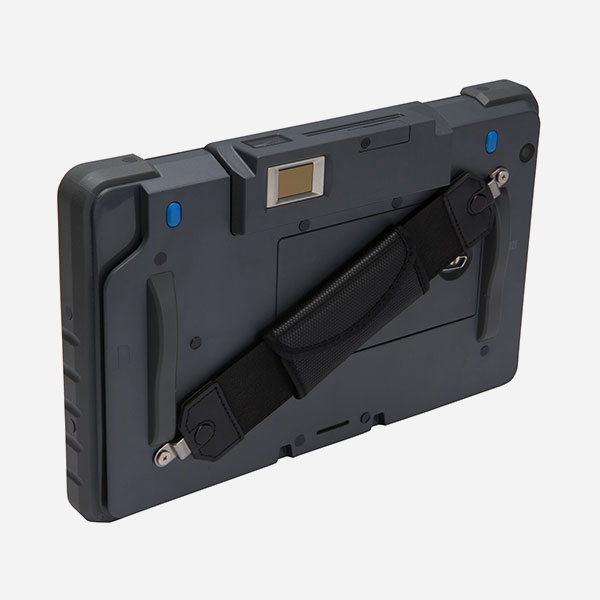

Hand strap |
1 |
|
Optional Module |
Smart IC Card Reader+ 1D/2D Barcode Scanner + 3G + FingerPrint(Combo Module B Optional) |
|
Battery & Power |
|
|
Battery |
8000 mAh, 3.7V, 29.6 Wh |
|
Power Adapter |
10W / 5V |
|
Cradle |
|
|
USB Port |
Micro-USB 2.0 x 1 (OTG) |
|
OS Support |
|
|
(32bit only)Win8.1 Industry Pro, Windows 10 IoT Enterprise, Android 4.4.4 |
|
|
Compliance |
|
|
Certifications |
CE, FCC, RoHS, UL, |
|
Fall Security |
IP54 (display side), 1.2 M drop, 1 drop per side at 25˚C |
|
Color |
|
|
Black |
|
|
Dimension( Wx H x D ) |
|
|
W1：204 x 128 x 35.3 mm |
|
|
W2：268 x 176 x 35.5 mm |
|
|
Weight |
|
|
W1：665g (1.47lbs), Max 690g (1.52lbs) (with all peripherals) |
|
|
W2：930g (2.08lbs), Max 990g (2.18lbs) (with all peripherals) |
|
|
Environmental |
|
|
Operating Condition |
0˚C ~ 40˚C, 20% – 80% RH, non-condensing |
|
Storage Condition |
-10˚C ~ 45˚C, 10% ~ 90% RH, non-condensing |
|
Optional Accessories |
|
|
iButton |
N/A |
|
2nd Display Bracket |
W1：Micro-USB 2.0 x 1 |
|
W2：N/A |
|
