2 Years Warranty
Multi-touch Function
Easy Maintenance
IVS-815 VariPOS Series
Touchscreen POS - Style meets Performance
Description :
IVS-815 is an affordable, stylish and efficient range of POS system that delivers the desired user experience that your business demands. Combined with IP66 dust and waterproof protection, projected capacitive technology & multi-touch function and powered by Intel low power fan less mobile processor, IVS-815 is robust and can handle the stresses of the point of sale environment performance the hospitality and retail industry insist on.
Product Features:
- Flexible architectures for 10.4” LCD second display, MSR, iButton,
- Fingerprint, RFID, VFD
- Die-casting aluminum housing with IP66 certification
- Colorful plastic cover to lighten business identification
- Hidden cable management
- Reliable and consistent quality to Point-of-Sales requirement

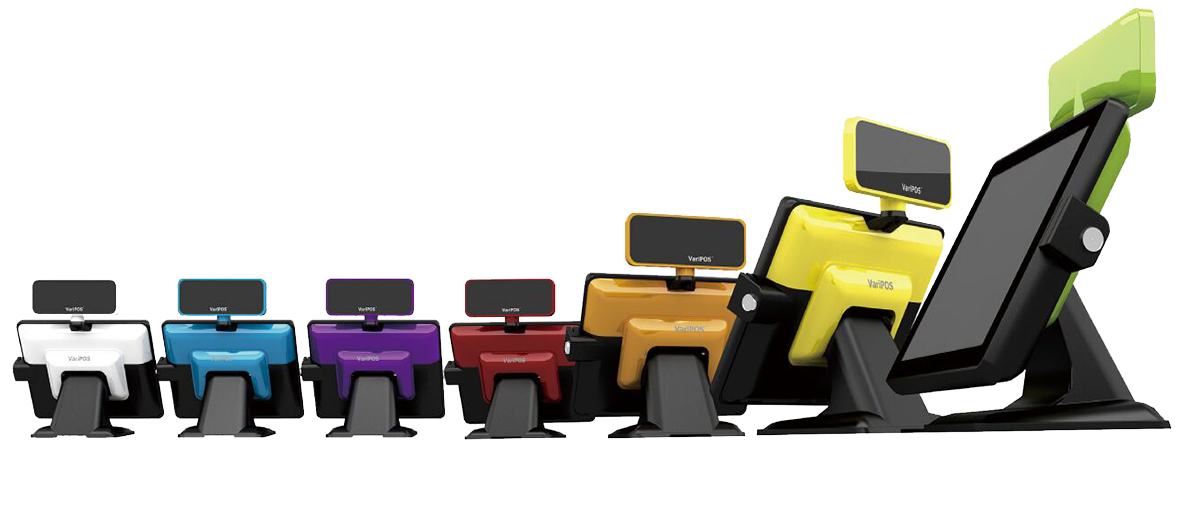

Colorful & Modular Design
IVS-815 is one of its kind that features stylish, colorful and modular design to satisfy multi-scenario requirements of your business environments. This system modularized structure is well-suited with a wide range of peripherals including MSR, iButton, VFD, RFID, Fingerprint, 2nd Display, VariPad 2nd Cradle…etc.
|
Main Board
|
CPU |
Intel® Core i3-3217U 1.8GHz (3MB Cache) |
|
Chipset |
My Bridge - HM76 |
|
|
System Memory |
1 x SO-DIMM DDRIII 1600MHz, up to 8GB |
|
|
Display |
TFT LCD |
Touch Screen |
|
Brightness (nits) |
350nits |
|
|
True Flat Projected Capacitive Technology |
True flat and IP66 waterproof |
|
|
Resolution |
1024 x 768 |
|
|
Storage |
HDD / SSD Type |
1 x SATA 2.5" HDD or SSD |
|
I/O Ports -External |
DC Power Input |
vy Bridge-1 x Mini Din 4P (DC 19V only) |
|
Cash Drawer |
Ivy Bridge- 1 x RJ-11 (Power Pin 12V or 24V(default)) |
|
|
Network (LAN) |
1 x Gigabit Ethernet by RJ-45 |
|
|
USB Port |
Ivy Bridge - 4 x USB 2.0, 2 x USB3.0 |
|
|
COM Port |
Ivy Bridge - 3 x RS-232(RJ48 connector) COM1/2 Pin10(5V); COM3I) |
|
|
LPT Port |
Ivy Bridge- 1 x DB-25 Printer port |
|
|
VGA Port |
Ivy Bridge- 1 x DB-15 VGA port, Power enabled by BIOS setting |
|
|
I/O Ports -Internal |
Speaker |
HD Audio, 2W Speaker x 2 |
|
Bus Expansion |
1 x Mini-PCI-E Slot |
|
|
OS Support |
Ivy Bridge- Windows 10 IOT, Windows 8.1, Windows 7, POSready 7 |
|
|
Power Adapter |
vy Bridge- External adapter, DC Model:65 Watts, +19VDC 3.42 Amax |
|
|
Certifications |
CE, FCC, LVD |
|
|
Protection |
IP 66 on front panel |
|
|
VESA Mounting |
100mm x 100mm VESA |
|
|
Material |
Main Unit: Die-Cast Aluminum ; I/O Cover: Plastic |
|
|
Color |
Main Unit: White / Black / Grey |
|
|
Dimension ( W x H x D ) |
370 x 300 x 236 mm |
|
|
Weight |
7Kg |
|
|
Operating Temperature |
0oC ~ 40oC, 10% ~ 90% RH, non-condensing |
|
|
Storage Temperature |
-20oC ~ 60oC, 10% ~ 90% RH, non-condensing |
|
Also Available With Various Specification:
- Intel J1900 / Intel i3-2330E 2.2Ghz / Intel i5-2510E 2.5Ghz
- Projected Capacitive Touch Screen
- 19” Touch Panel
